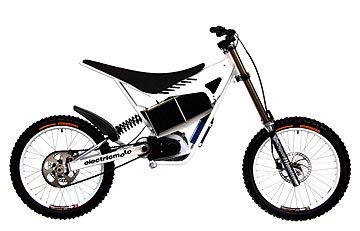

2005 Blade

Frame: Laser-cut double downtube with replaceable rear sub-frame. Powder-coated finish.
Fork: Marzocchi Super Monster-300mm front travel, adjustable rebound and compression.
Shock: Works Performance-12.5" rear travel.
Motor: Briggs and Stratton E-Tek Neodymium Pancake
Controller: Fully programmable Alltrax 19.2 kiloWatt Peak (25.7 electrical HP)
Horsepower (Rear wheel dyno tested): 18.2 HP
Top Speed: 40 MPH
Battery: Hawker Genesis-16.7 amphour-48 volt nominal-total capacity 800 Watthours
Wheels / Tires: 3.0 x 24 Rear, 3.0 x 24 Front. Ringle Doublewide rims.
Rear Hub: Proprietary CNC billet aluminum.
Front Hub: Billet aluminum 20mm thru-axle.
Brakes: Hayes Hydraulic 8" rotors.
Seat: Yamaha YZ style- SDG Gripper.
Wheelbase: 56"
Weight (fully charged): 165 pounds.

Blade VS Honda XR 250

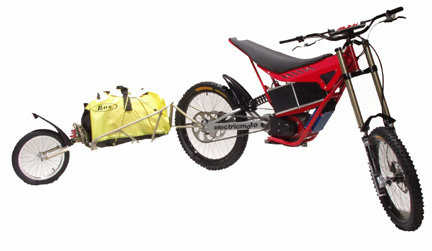

2005 Blade iHybrid

Power: 1,000 or 2,000 watt versions are available.
Run Time: The 1,000 watt version will power the Blade continuously for 5 hours at 10 mph. The 2kW version will run it for 5 hours at 20 mph.
Suspension: Fully articulated and has a quick ajustable shock.
Weight: 35 lbs for the 1,000 watt version or 55 lbs for the 2,000 watt version. * Length: 40" * Width: 24"
Noise Level: 59 decibels (For comparison, normal conversation is 60 dB while a gas powered motorcycle ranges between 95 - 110 db. Source)

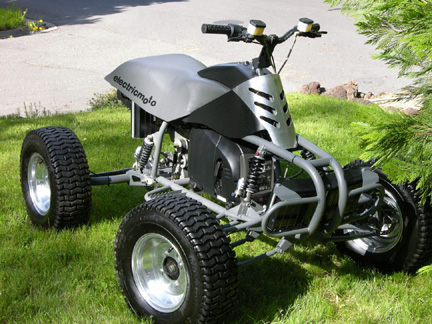

2005 Quad iHybrid

Quad iHybrid

Gas Electric Quad
Specs available on request
